Self-Closing Pivot Door Hinge Set
$95.00 AUD
Skip to product information
Self-Closing Pivot Door Hinge Set
$95.00 AUD
Taxes included.
Shipping calculated at checkout.
Item Code: Z-PVTH-SC
Ideal for Residential applications
Suitable for Doorways where a self-closing pivot door is required with Timber doors up to 920mm wide.
Do I need to buy any other parts?
The Z-PVTH-SC is a complete package and you will only need the door and handle of your choice
INSTALLATION?
we would recommend installation by an experienced carpenter
MODEL NO: Z-PVTH-SC

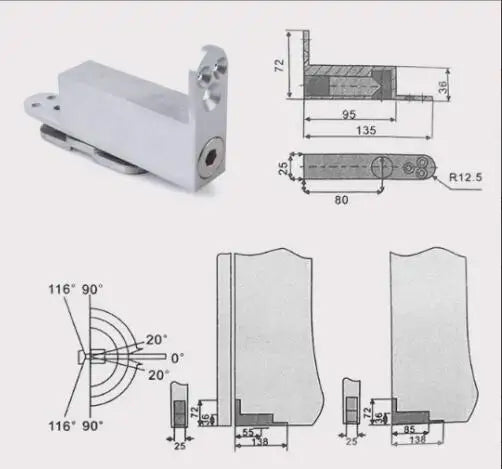

Specifications:
- Suitable for doors weighing up to 60kg
- Ideal for doors up to 920mm wide
- Will suit 35-40mm thick doors
- Self-closing with adjustable speed and closing force
- Surface mounted bottom pivot foot
- Hold open function at 90 degrees
- Fixing screws included

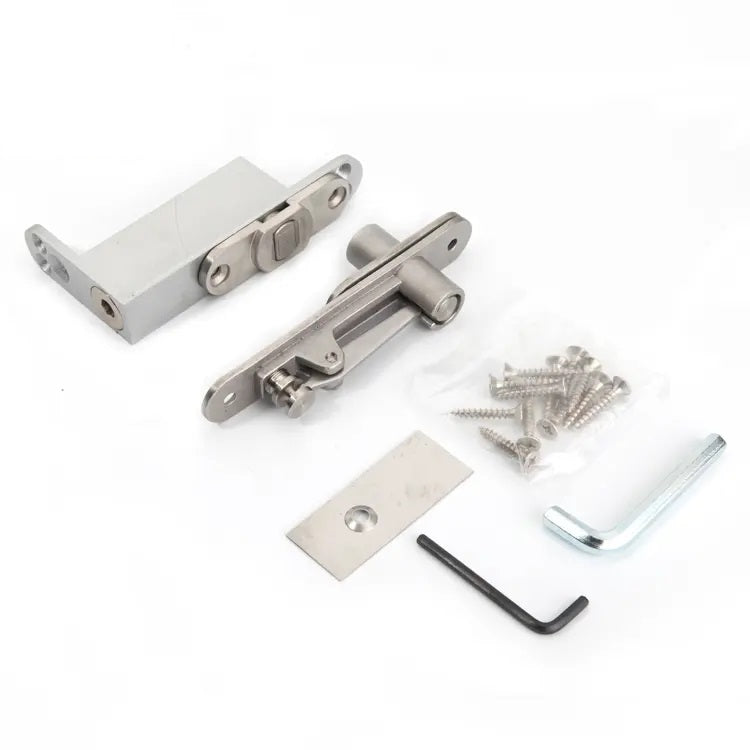

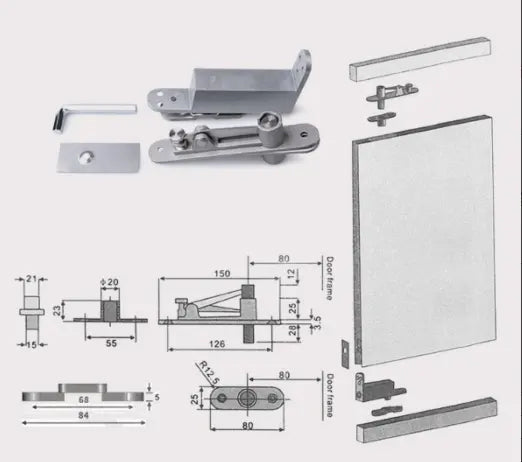

What's Included:
- Surface mounted pivot foot

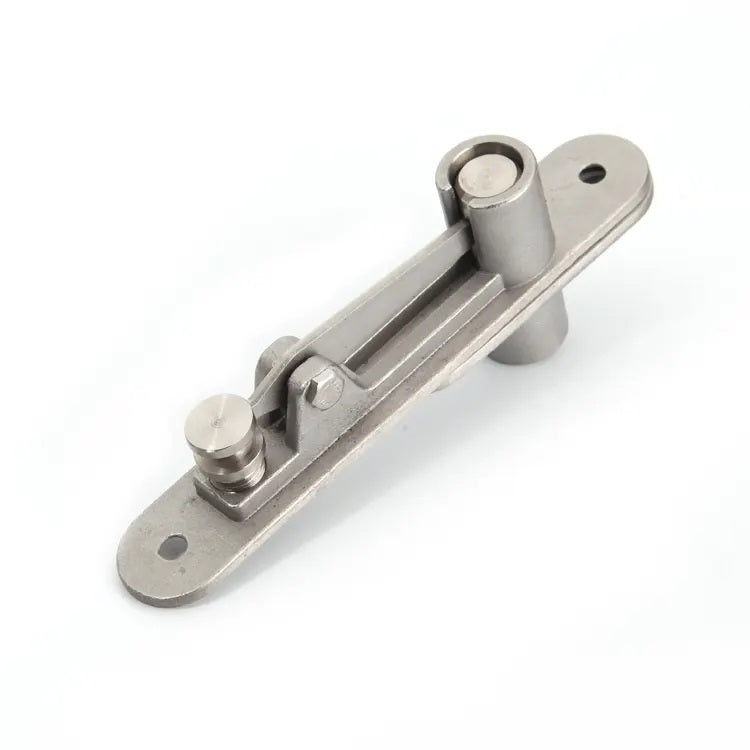

- Adjustable pivot closer with stainless steel side cover plate

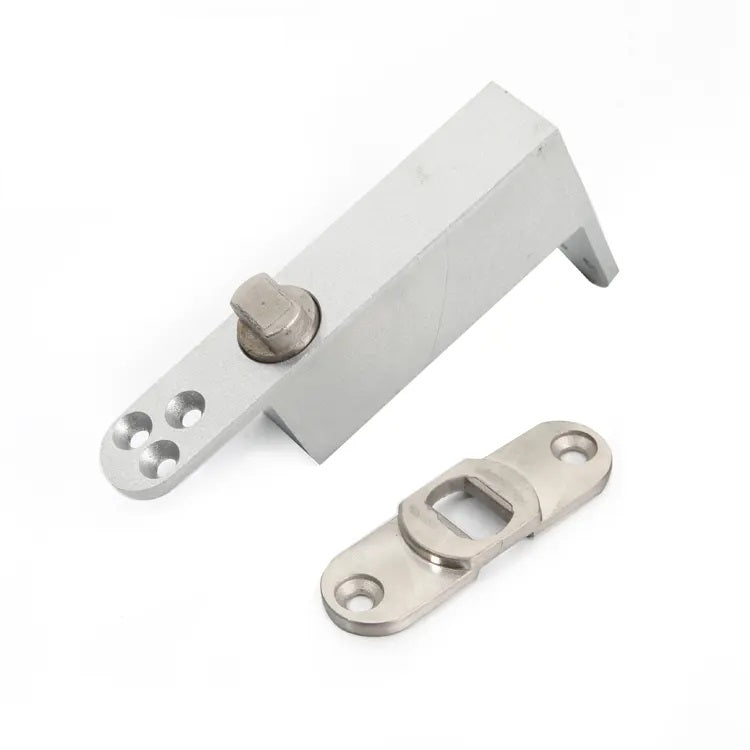

- 2 part top pivot set
- all fixing screws
Ideal for internal doorways where floor cut-outs not required.
Buy the Z-PVTH-SC set now
Note: Door not included.
